Orange Blue

As you know, many Russian bathhouse lovers are waiting for the gas line to be connected to their plots. They are faced with the question: is it worth buying a wood-burning bath stove now in order to buy a gas stove again in a year?

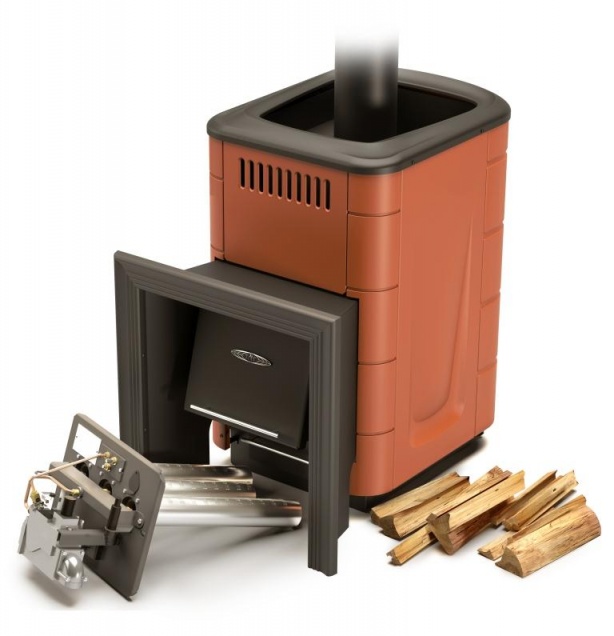

Of course, it's not worth it. Because TMF presents a new gas-wood bath stove "Orange Blue". Its name speaks for itself. Firewood burns in it with an orange flame, and gas burns in it with a blue flame.

Yes, this stove can use both firewood and main gas as fuel without any alterations and without loss of its consumer properties.

The stove is designed for the most popular volume of steam rooms - from 8 to 18 m3.

The stove is made in a recognizable stylish design of TMF bath stoves, which at first glance distinguishes it from other stoves.

The volumetric details of its casing are made by the cold drawing method, which is used for the manufacture of body parts of modern cars.

The stove is painted with a heat-resistant organosilicate composition of the anthracite color, and the upper frame is made of glossy stainless chrome steel.

The stove is designed for heating from an adjacent room. Access to a stove door or the controls of the gas burner is made through a tunnel with a wide convenient portal.

The stove fuel tank has a volume of more than 33 liters and it can hold firewood with a maximum length of about 40 cm.

To switch the stove to gas, the stove door is quite easily removed with a socket wrench.

TMF gas burners are regularly installed in its opening, the horns of which have a length at the entire depth of the stove fuel tank.

The stove  is supplied without a gas burner device (GBD).

It is recommended to use branded certified GBD "Sakhalin" 26-32 kW, "Triada" 40 kW and "Surgut" 26 kW. In addition, it is possible to install suitable gas burner devices with a horn length of no more than 390 mm from other manufacturers.

Burners can be both energy-dependent and independent.

The burners use gas automation from the SIT Italian company.

Gas combustion is controlled by a remote control that automatically maintains the set temperature in the steam room.

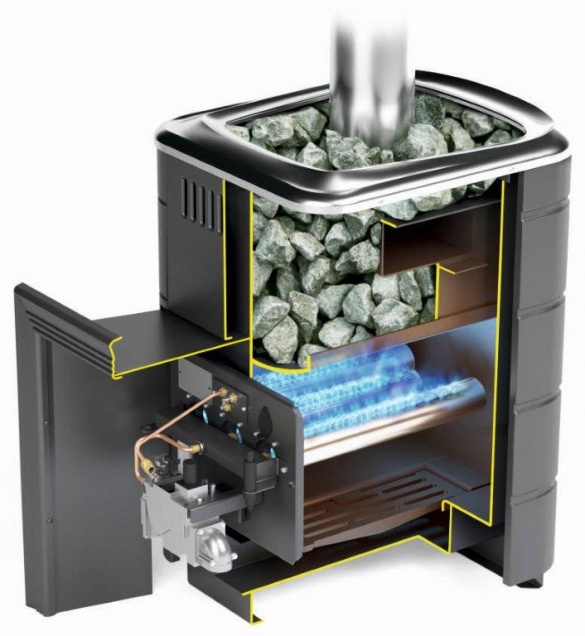

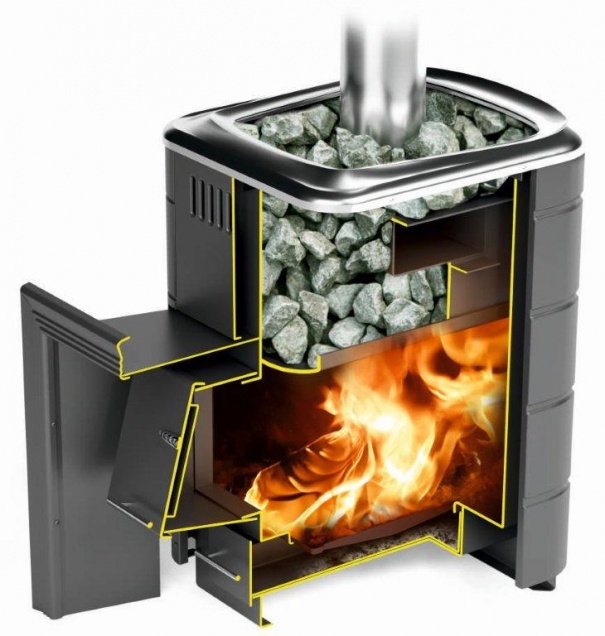

The rather complex and efficient design of the internal unventilated furnace heater is completely borrowed from the well-proven gas stove "Urengoy 2018".

Thanks to the thoughtful geometry, there is no accumulation of gases in the stove and there are no obstacles to their exit.

The furnace heater of the “Orange Blue” stove has a volume of 18 liters, it can accommodate more than 30 kg of stones.

The stove is supplied in the Carbon version - made of high-quality structural steel.

In both versions, the stove is made in the concept of thermomechanical equal strength – the most loaded sections of the stove are made significantly reinforced.
