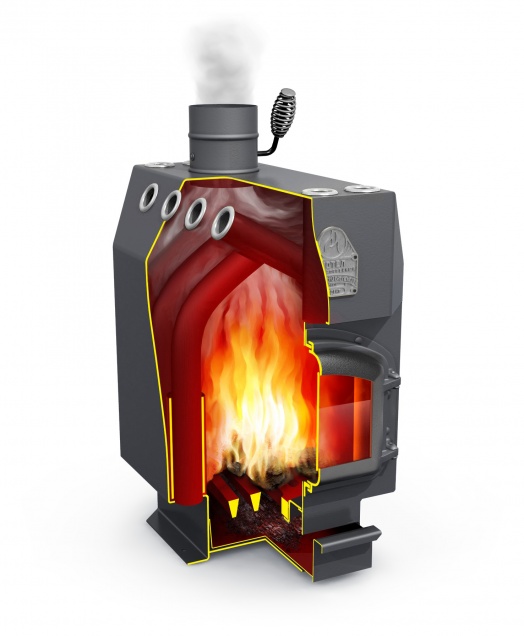

- The area of the heating surfaces is record large, they are directly heated by flame and cooled by air
- A large air-tight firebox makes it possible to effectively use the stove in the mode of continuous burning
- Special calibrated orifices supply hot air for the complete burning of exhaust gases
- Convective heat-exchange pipes throughout the cross section and length, from the beginning to the end, are located directly in the flame
- The shape of the firebox is that of the flame of the freely burning solid fuel
- You can warm up food on the upper horizontal surface heated with the flame
- The front and rear surfaces on which convective pipes are located take full part in the convective heat exchange
- A large replaceable grate ensures regular burning throughout the area of the firebox. Ashes drop down to the ash box through the grate apertures
- With a capacious pull-out ash box you can remove ashes, not interrupting the process of burning
- Inlet holes of convective heat-exchange pipes are higher than the floor level, which is good for free convection of the heated air
- The stove has a built-in stable base with holes for being fixed to the floor
- Characteristics
- Details
- Modifications
- Where can one buy
- Characteristics
-
Details

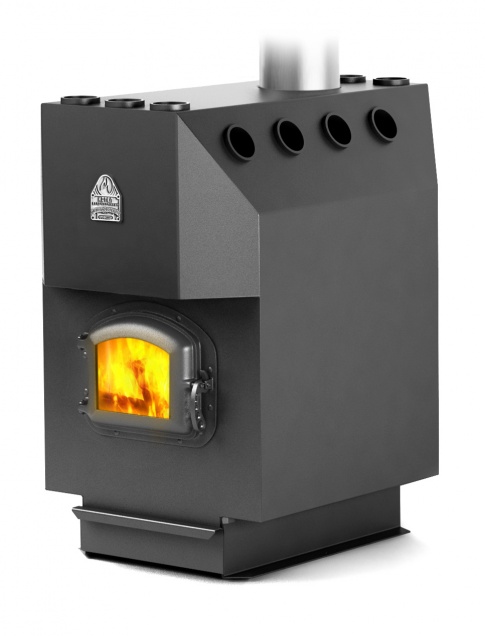

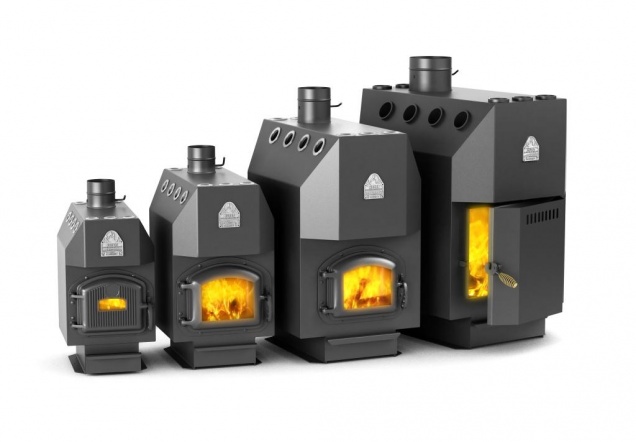

The line of coal solid-fuel convection stoves is a modification of popular convection stoves such as «Student», «Engineer» and «Professor» to run not only on fire wood, but also on coal. Boilers with the rated capacity from 9 to 40 kW are designed for economical air heating of residential and non-residential premises with the maximum volume from 150 to 1000 cubic meters respectively.
Convection stoves have additional cartridges to protect convection tubes from burning out. A hermetic fire place makes it possible to use the stove in the mode of longtime burning. A cast iron door with a heat-resistant translucent screen allows visual control of the coal burning process. Like in the base models, due to additional installed coolers for side convection tubes, it is possible to direct the hot air through air ducts to adjacent rooms.
The external design of the stoves has the anthracite colour with a cast iron door with glass. Modifications of the stoves are different in flue exit - upwards or backwards.
The line of coal solid-fuel convection stoves is ideal for intense air heating of residential premises, garages, green houses, hangars, etc.
