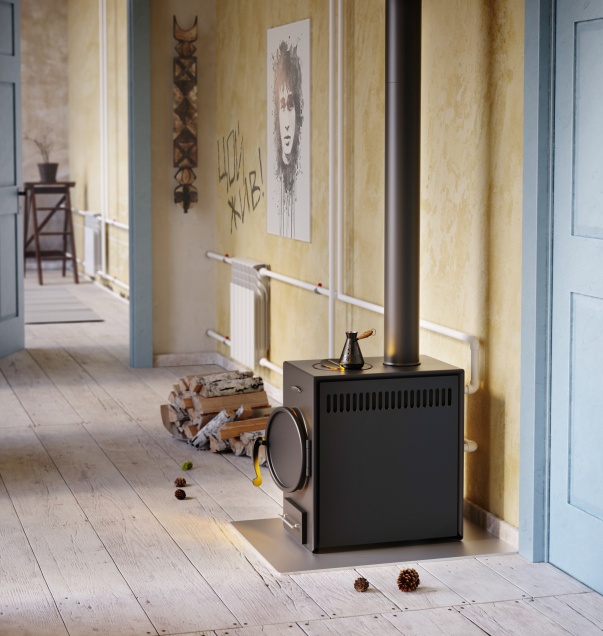

The «Normal-battery» oven is a new model in the popular line of economy-class heating ovens «Normal».
The mention of the word «battery» in the oven name directly indicates the possibility of water heating of multi-room country houses or other buildings for public utilities.

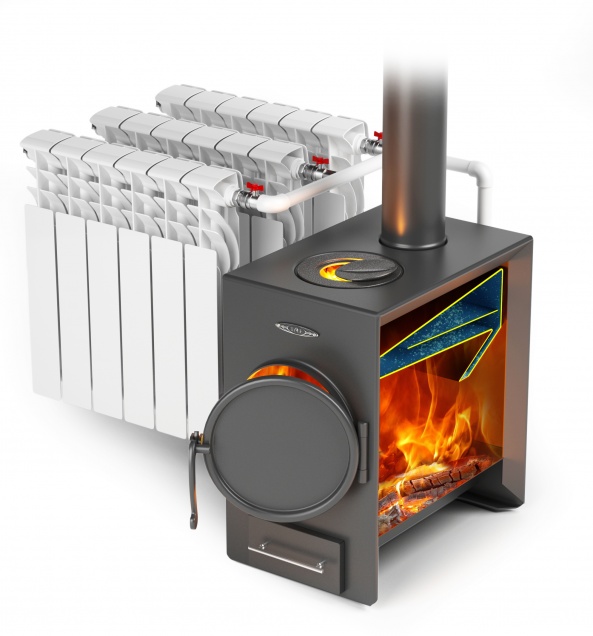

The main difference between this oven and its predecessors of the same name is the presence of a built-in removable hot water boiler with a nominal rating power of 5 kW. This allows connecting up to 25 sections of water heating radiators to the furnace at the rate of 0.2 kW per section.
Therefore, the «Normal-battery» oven can heat a room with a volume of up to 65 cubic meters, where it is installed, and other rooms with a volume of up to 100 m3. A decrease in the room’s volume for air heating is associated with an additional take-off of the oven heat output for water heating.
The new model has a cast iron burner for cooking while the oven is operating, as well as for revising and maintaining the upper part of the built-in hot water boiler. The new oven chimney outlet is vertical.
One model of the «Normal-battery» oven in anthracite color is serially produced, with a built-in removable hot water boiler made of structural steel 3 mm thick.
