- The area of the heating surfaces is record large, they are directly heated by flame and cooled by air
- A large air-tight firebox makes it possible to effectively use the stove in the mode of continuous burning
- Special calibrated orifices supply hot air for the complete burning of exhaust gases
- Convective heat-exchange pipes throughout the cross section and length, from the beginning to the end, are located directly in the flame
- The shape of the firebox is that of the flame of the freely burning solid fuel
- The front and rear surfaces on which convective pipes are located take full part in the convective heat exchange
- A large replaceable grate ensures regular burning throughout the area of the firebox. Ashes drop down to the ash box through the grate apertures
- With a capacious pull-out ash box you can remove ashes, not interrupting the process of burning
- Inlet holes of convective heat-exchange pipes are higher than the floor level, which is good for free convection of the heated air
- The stove has a built-in stable base with holes for being fixed to the floor
- Characteristics
- Details
- Modifications
- Where can one buy
- Characteristics
-
Details
The line of solid-fuel convection stoves for longtime burning with the rated capacity from 6 to 40 kW is designed for economical air heating of residential and non-residential premises with the maximum volume from 100 to 100 cubic meters respectively.

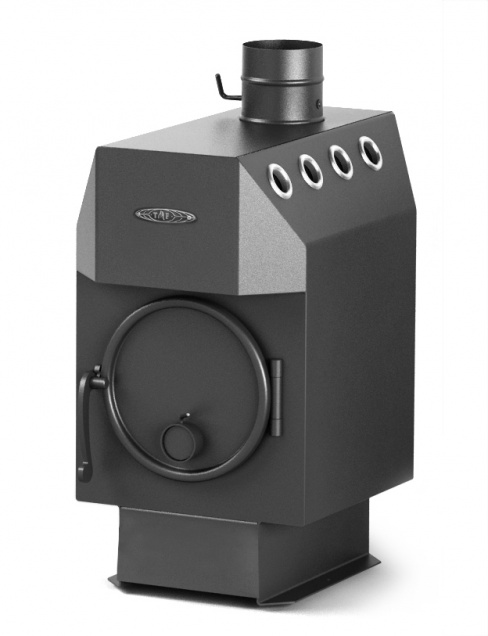

The line includes the following models: «Gymnasium Student», «Student», «Engineer», «Associated Professor» and «Professor» which are combined by the same mode of functioning, assembly and fuel. They are different in size, mass, burner section, diameter and number of convective tubes, area of heating surfaces, and flue exit diameter.
Stoves line had a record-setting developed area of heating surfaces that are heated by the flame and cooled by air. Convective heat exchanging tubes along the whole cross-section area and along the whole length, from beginning till end, are in the flame. The front and the rear surfaces where convective tubes are located participate completely in the convective heat exchange. A big hermetic fire place makes it possible to efficiently use the stove in the longtime burning mode.
Convection stoves are designed, first of all, to heat premises, but one can also warm food on the upper horizontal surface heated by the flame. Due to additional installed coolers for side convection tubes, it is possible to direct the hot air through air ducts to adjacent rooms.
The external design of the stoves has the anthracite colour. Modifications of the stoves are different in specifications – steel or cast iron with glass, flue exit upwards or backwards.
The line of solid-fuel convection stoves is ideal for air heating of residential premises, garages, green houses, hangars, etc.
