- It is designed on the basis of the popular air-heating boiler with the difference that not air but water is now heated in convective pipes

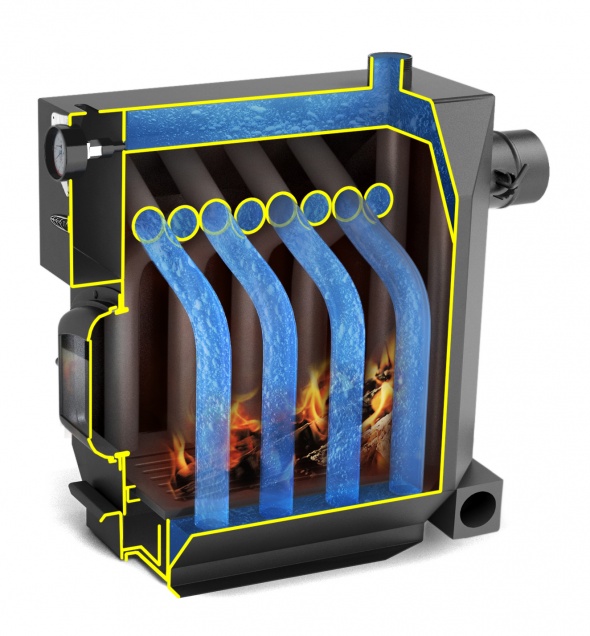

- The firebox is screened with convective pipes from all sides, which makes it possible to maximally use thermal radiation of the burning fuel and the heat contained in the flue gases for water heating
- Tubular electric heaters maintain temperature of the heat carrier during the breaks in the boiler operation
- You can select a modification with or without tubular electric heaters, as well as a modification with an option to independently install a tubular electric heater (TEH) (in the «for TEH» modification)
- It can heat even many-storeyed premises with a complex configuration. It can be applied for the connection of water heating of open and closed types
- With a built-in thermal manometer you can always see the temperature and pressure of the water circuit
- Both wood and coal can be used as fuel

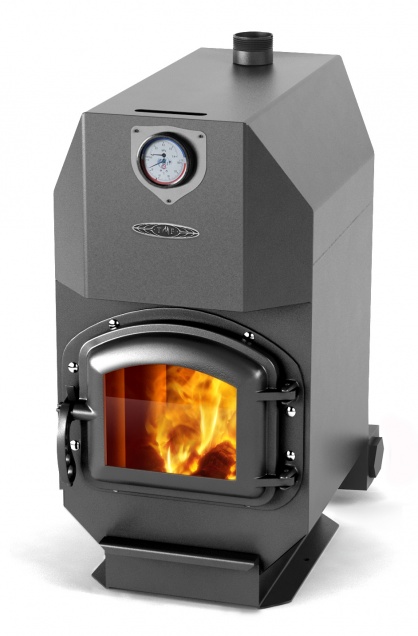

- A cast-iron hatch with a translucent window made of heat-resistant glass makes it possible to visually control the process of burning
- Characteristics
- Details
- Modifications
- Where can one buy
- Characteristics
-
Details
The line of «Gidravlik» water heating boilers is designed on the basis of popular air heating boiler with the difference that it is not air, but water that is heated in the convector tubes. All-round screening of the fire place with convection tubes makes it possible to use the thermal emission of the burning flue and the heat in the flue gases to the maximum to heat water.
The line is represented by the «Student» and «Engineer» models. Like the air heating boilers, they are different in size and capacity. They are used to connect water heating of open and close types. Fire wood and coal are used as the fuel. «Gidravlik» stoves are used for water heating of residential and non-residential premises with the maximum volume from 400 to 670 cubic meters.
There are three modification of the «Student Gidravlik» model: completed with tubular electric heaters («with THE»), with a possibility of do-it-yourself installation of TEH («for TEH») and without TEH. There are two modifications of the «Engineer Gidravlik» model – «with TEH» and «for TEH». TEH makes it possible to support the required heat carrier temperature during pauses in the boiler operation.
